Tail Tidy / Number Plate Re-locator Kit – Triumph Scrambler 1200 XE / XC (2019-2024)
£74.99 – £164.99
NOTE – WILL NOT FIT 2025 onward model
This kit is available in 2 options, please carefully read the full descriptions. We strongly recommend watching the video before purchase.
These kits completely tidy up the tail end of your bike. Giving you a much more aggressive Scrambler profile.
The kit provides better protection from mud & water coming up from the back end. As the number plate is in a much better position to protect the rider.
BASIC KIT
Your Basic Kit comprises of a 3mm thick, powder coated, alloy, CNC laser cut mounting plate – that re-locates the standard number plate lamp & number plate to the underside of the alloy mudguard.
Included in the kit are mounting points for rear indicator lamps to be mounted under the rear mudguard. Also included are adaptor brackets that allow the use of the OE equipment Triumph 2-hole fitting lamps. However, we do not recommend using the large plastic bodied OE type indicator lamps in conjunction with the standard exhaust system as they will over heat and may be damaged in the lower position. We recommend metal-bodied, smaller type lamps.
Alternatively, it can be used with aftermarket indicators – genuine Triumph wiring plugs are supplied in the kit for using aftermarket indicators.
With this Basic Kit, you will need to shorten the plastic inner mudguard yourself. This can be done quite simply with a hacksaw. This is described in our video instructions.
We understand that some customers may not want to cut their own inner mudguard. So in the Full Kit (described below) we also include a pre-modified genuine Triumph inner mudguard. As this uses a genuine part, this is the reason for the difference in price of the kits.
Please watch the detailed fitting video below.
FULL KIT
This includes all of the Basic Kit & a modified genuine Triumph inner mudguard assembly, ready to be bolted straight on to the bike. This kit is for customers who do not want to modify their own inner mudguard. This kit is bolt-on and fully reversible to stock.
Please watch the detailed fitting video.

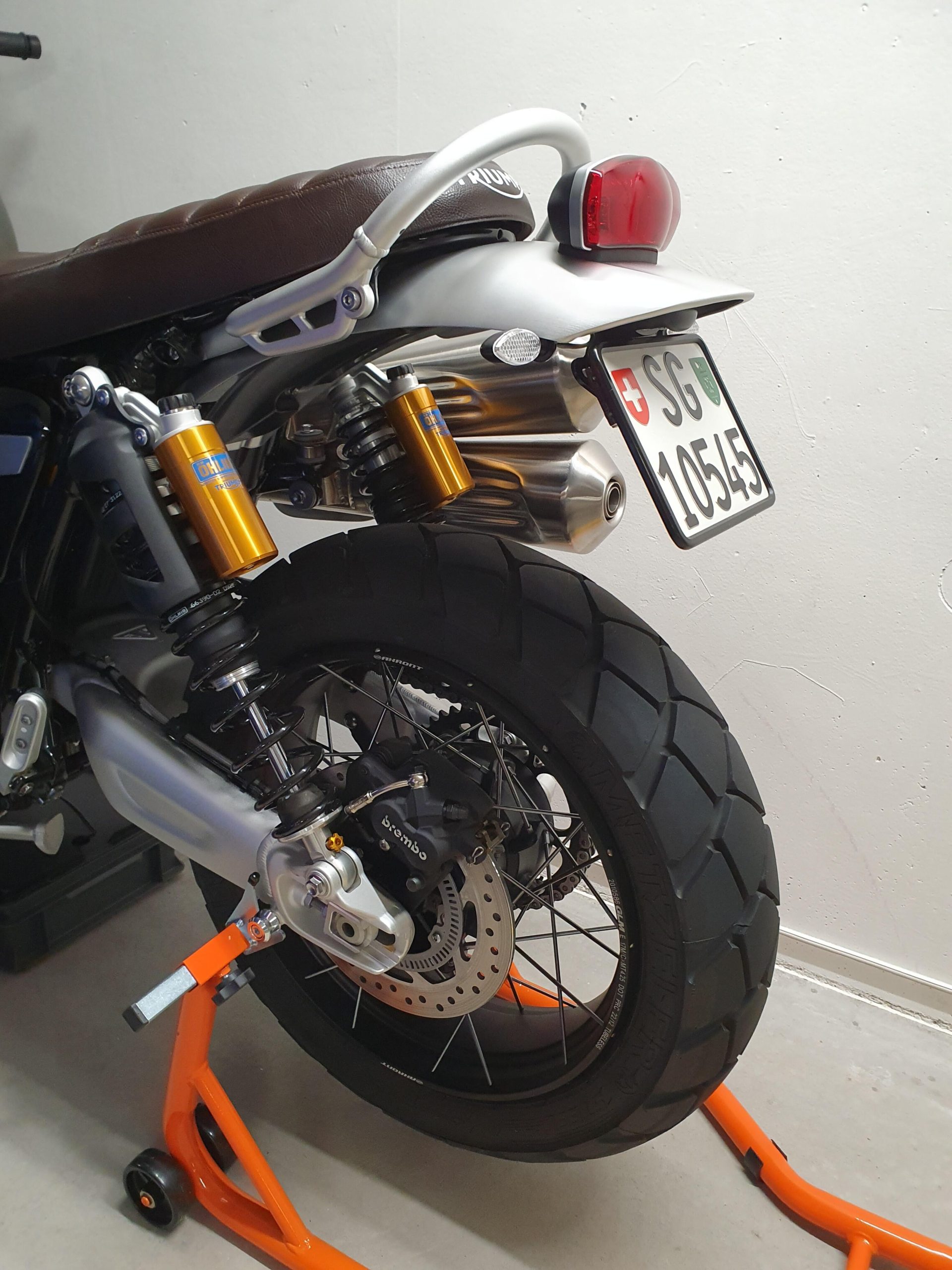

Customer Reviews

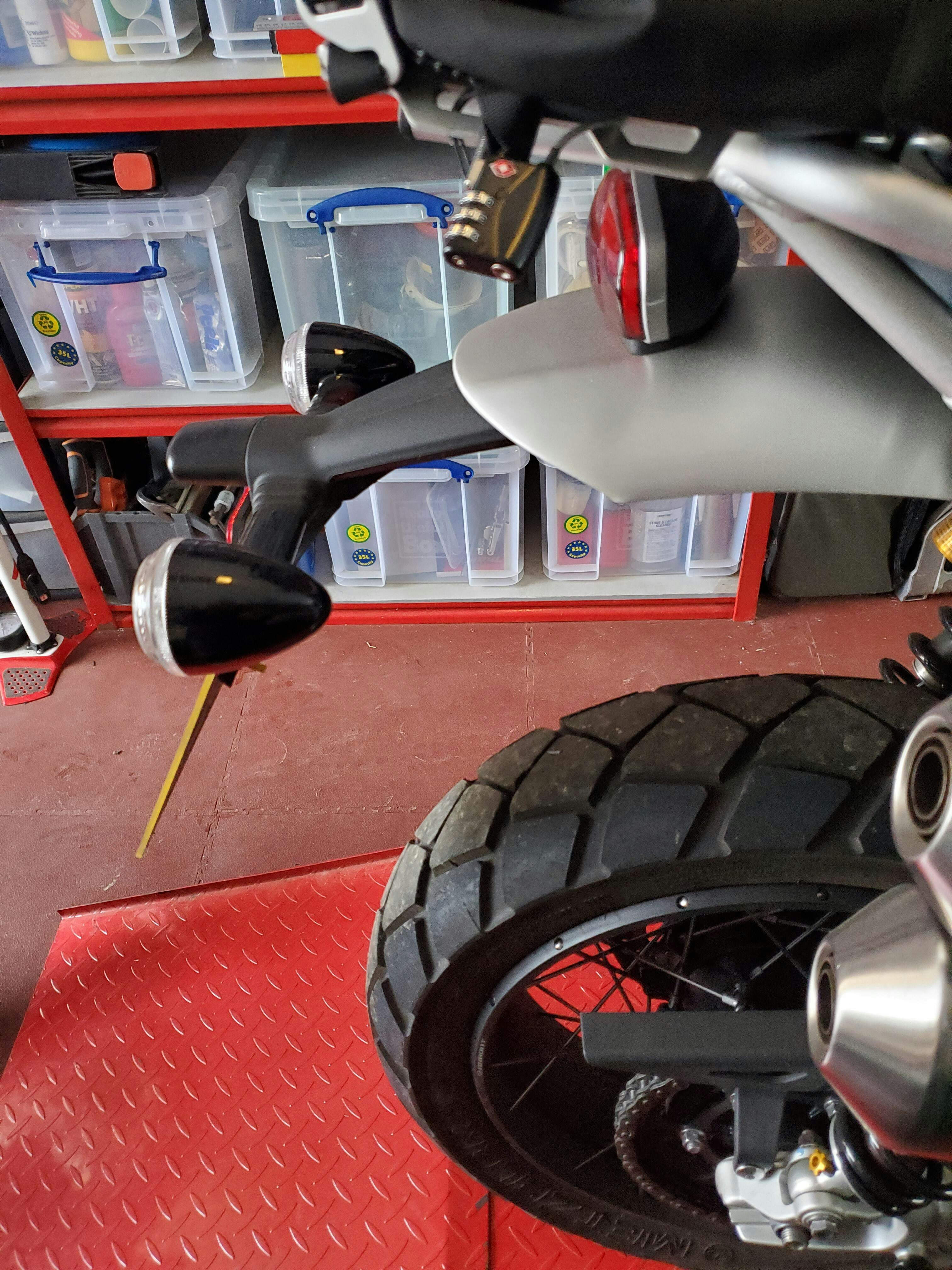

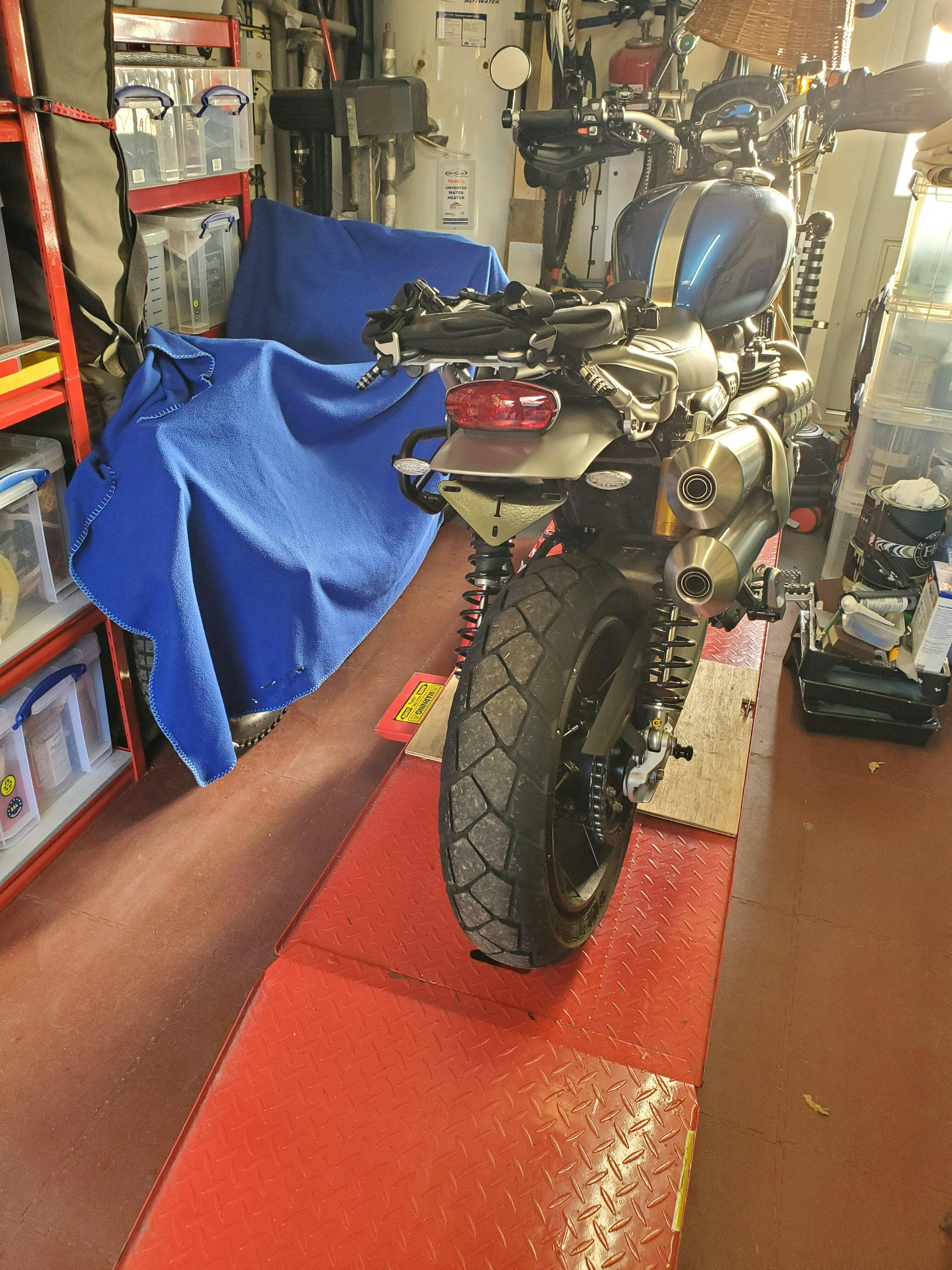

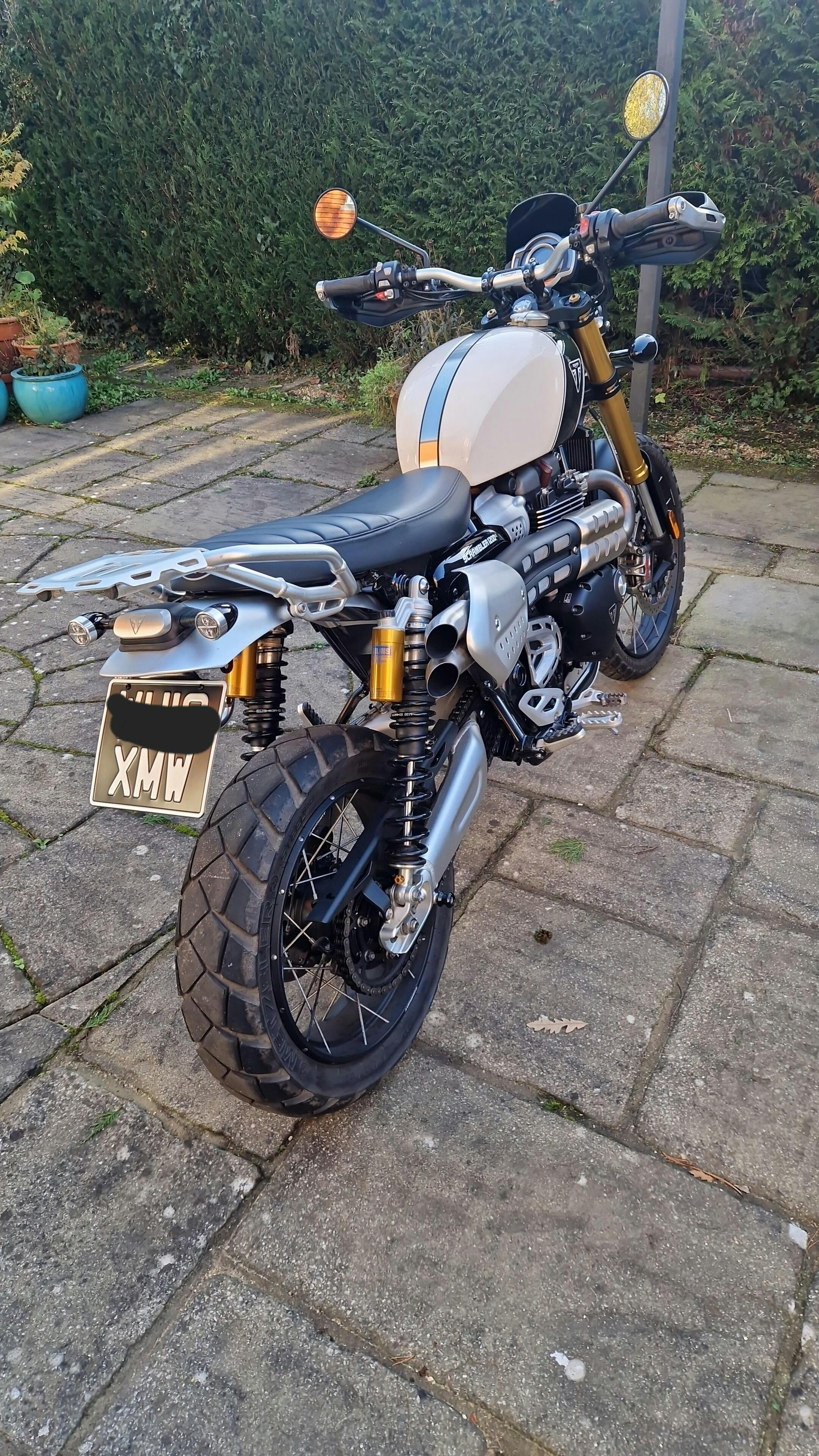

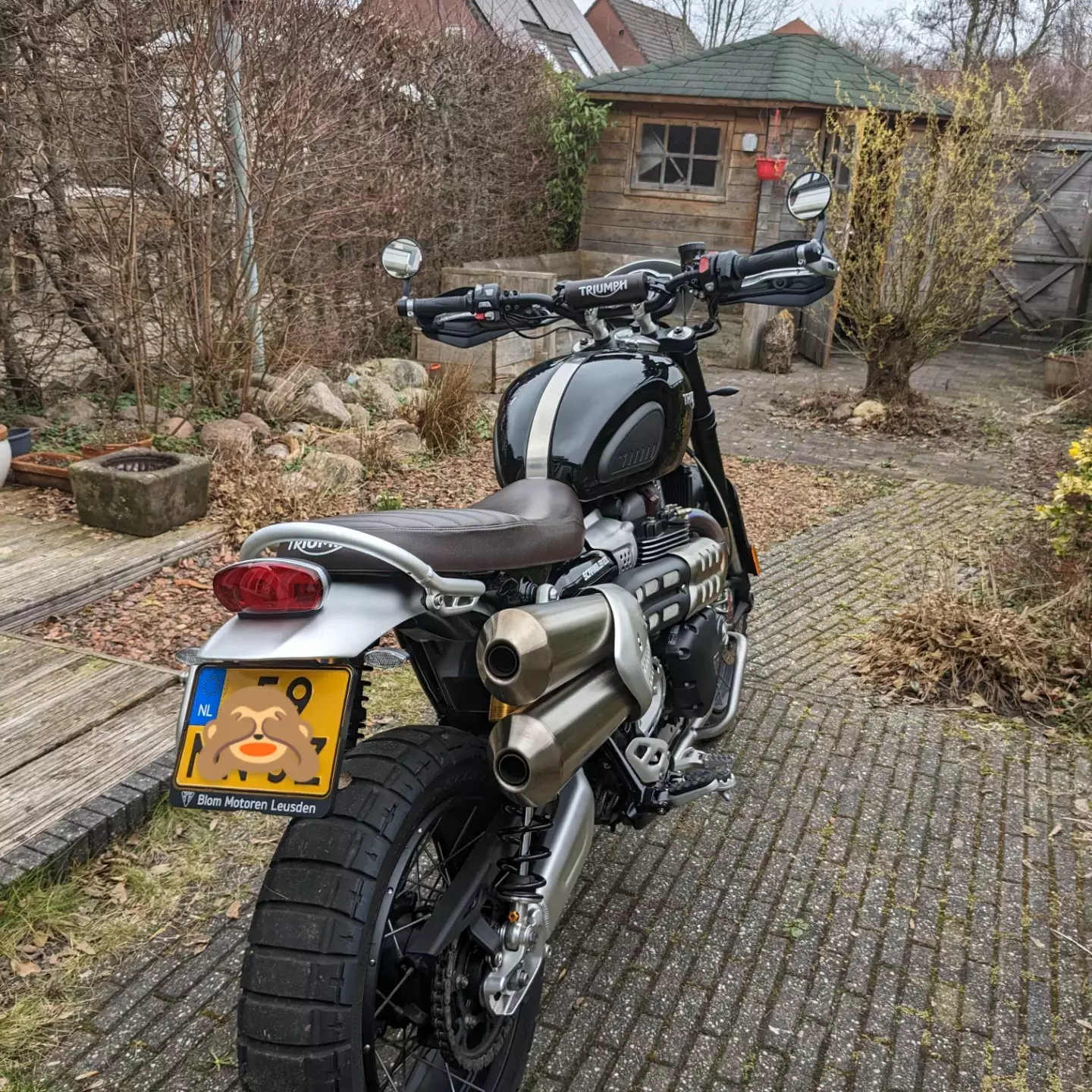

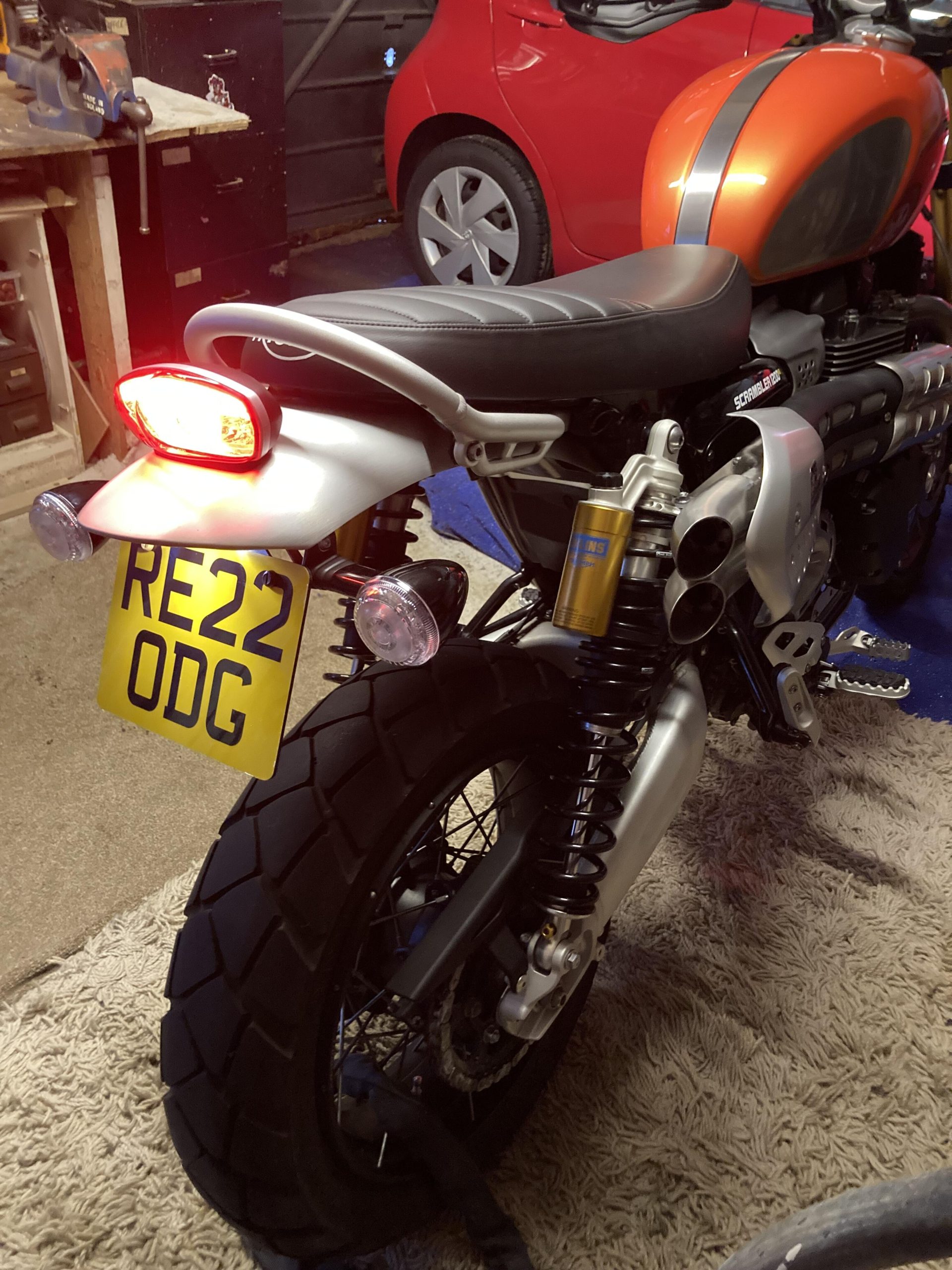

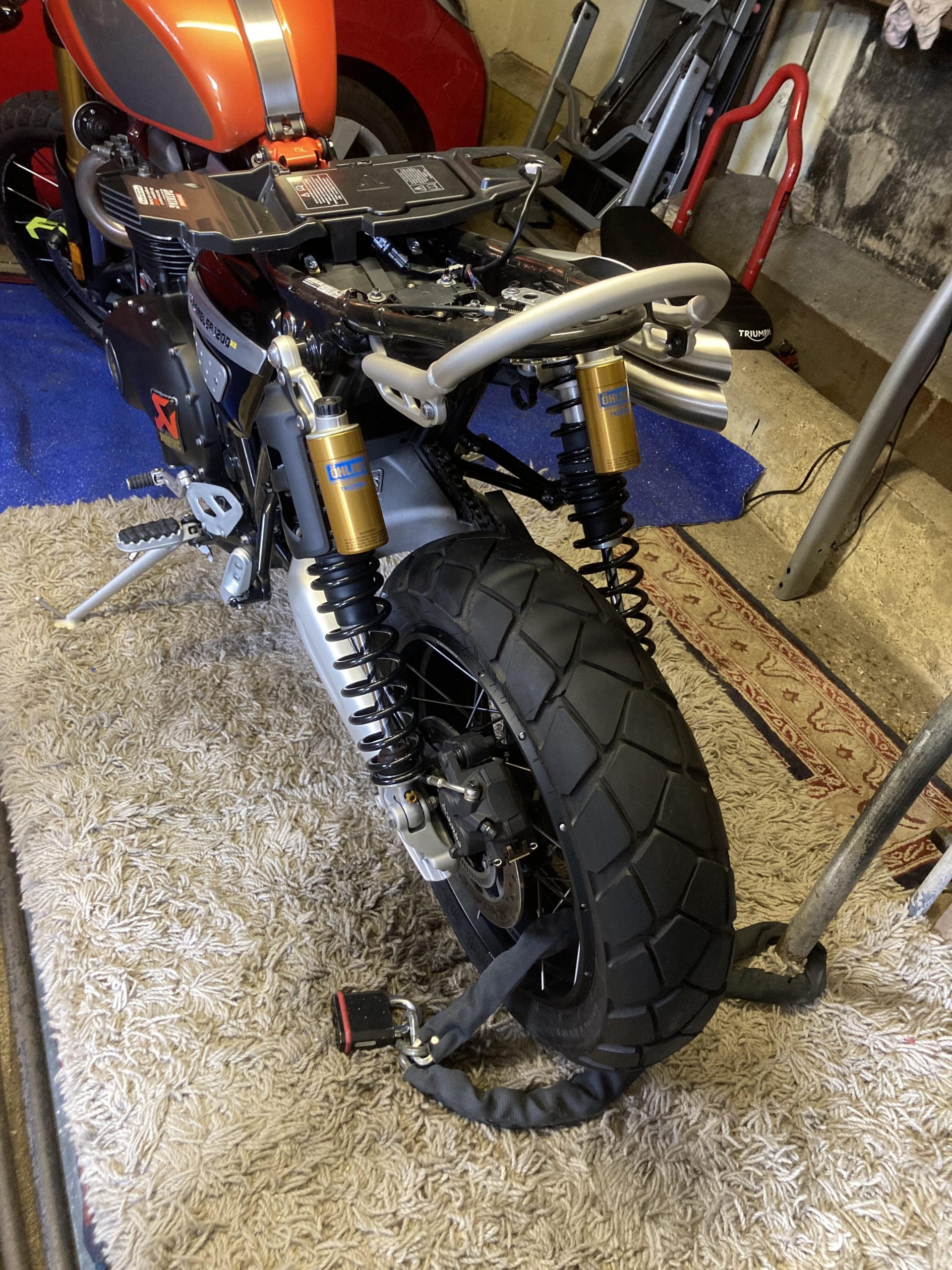

This is a great bit of kit. There are limited option for the Scrambler - curious given its horrible 'dog tail' OEM setup - and most of them are silly prices and/or badly thought through (such as leaving the ECU unprotected. This kit is very reasonably priced, well thought out and nicely engineered. Might look simple, but there is a lot of design work to get the bends and angles to work. Fitting is relatively straight forward (just watch the video first) for anyone with a half decent toolkit. Don't be put off by the idea of cutting the undertray - its a couple of minutes with a hacksaw and the moulding features guide the location. You do need to file a couple of notches at the sides (3mm triangles really) and just trim a couple of ridges to allow the modified tray to butt up to the new number plate mount. Once done it looks like a factory fitment, so a great result. If there is a bit that requires patience it is getting the wiring to sit comfortable between the mouldings. Not difficult, but needs patience (as it says in the video). Because the new set up is a shorter run to the light/s indicators there is more wiring to fold in so just take your time and keep trying the two halves until its clear that they are sitting together on the metal bushings without trapping any wires. Took me half a dozen goes. After that just put it back together (as Haynes would say 'reassembly is the reversal of the above'). The end effect is a great looking rear end (and who doesn't like one of those?) with everything functioning properly a neatly tucked under the mudguard. Brill. One final note - in the video it says you can use a smaller 6 x 8 number plate, but I think this is only for pre 2021 bikes. The Gov website and all other sources all state 9 x 7 required (unless you have 1's or i's in your reg where you can shave a few mm). Highly recommended product and easily the best version available.
Well made and easy to fit, even with fitting multi function lights at same time (2nd review to amend incorrect 3* initial rating)
Perfect fit really well made 😊👍
Great bit of kit and good value. Save money and just by the tail tidy and do the cutting your self. Ensure you watch the very details and clear YouTube video instructions.
The product is very high quality and everything you need. Annoyingly one of the Torx bolts was rounded off on the original plate hanger that was on the bike from new so I had to cut the hanger to pieces, made the job more awkward but that came from Triumph like that. Would 100% recommend Tec products.

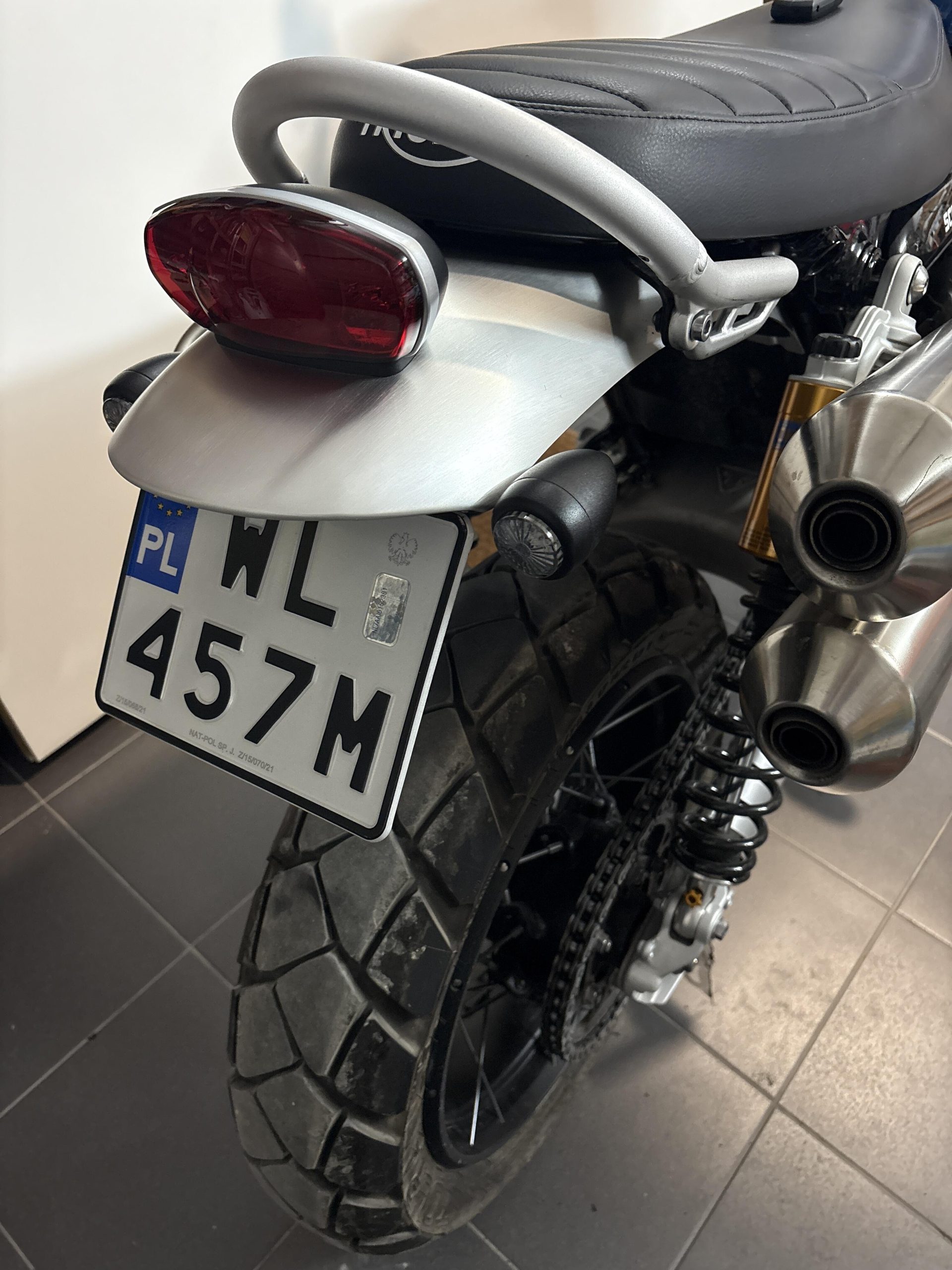

I used the original Triumph indicators and it looks great, but I do have the slash cut exhaust so not worried that they are too close to the heat.
